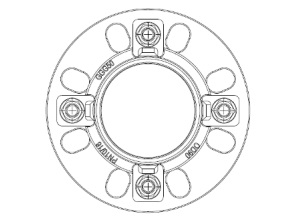

Hegawa FastFit Grip PE/PVC Flange Adaptors SLES

Complete with universal flange drillings, EPDM gaskets, Dacromet coated Bolts and Nuts. All metal parts epoxy coated (blue color), 200 microns

Hegawa FastFit Grip PE/PVC Flange Adaptors SLES

Complete with universal flange drillings, EPDM gaskets, Dacromet coated Bolts and Nuts
All metal parts epoxy coated (blue color), 200 microns

Hegawa FastFit Grip PE/PVC Flange Adaptors SLES

Complete with universal flange drillings, EPDM gaskets, Dacromet coated Bolts and Nuts. All metal parts epoxy coated (blue color), 200 microns

Nominal Size Wissen *** = (Example GR.A.063.E.D.SLES or GR.A.063.E.S.SLES) 50 65 80 100 125 150 200 225 250 300 400 450 500 600 700 E.D. = Dacromet B&B E.S. = Stainless steel B&N	Pipe outside diameter range in mm Wissen 63 75 90 110 125 140 160 180 200 225 250 280 315 355 400 450 500 530 560 710	Flange DN Wissen 50/60/65 80 100 125 150 200 250 300 400 450 500 600 700	D Wissen 185 200 220 246 248 285 288 336 340 400 457	b Wissen 19 22 24	L1 Wissen 65 67 88 145	L Wissen 110 120 150 170 220	Bolts Wissen 2 x M12 4 x M12 4 x M16 6 x M16	Torque (Nm) Wissen 55 100 150	Product Code Hegawa Wissen GR.A.063.*.SLES GR.A.075..SLES GR.A.090..SLES GR.A.110..SLES GR.A.125..SLES GR.A.125A..SLES GR.A.140..SLES GR.A.160..SLES GR.A.180..SLES GR.A.200..SLES GR.A.225..SLES GR.A.250..SLES GR.A.280..SLES GR.A.315..SLES GR.A.355..SLES GR.A.400..SLES GR.A.450..SLES GR.A.500..SLES GR.A.530..SLES GR.A.560..SLES GR.A.710.**.SLES
50	63	50/60/65	185	19	65	110	2 x M12	55	GR.A.063.***.SLES
65	75	50/60/65	185	19	65	110	2 x M12	55	GR.A.075.***.SLES
80	90	80	200	19	65	110	4 x M12	55	GR.A.090.***.SLES
100	110	100	220	19	65	110	4 x M12	55	GR.A.110.***.SLES
125	125	100	246	19	65	120	4 x M12	55	GR.A.125.***.SLES
125	125	125	246	19	65	120	4 x M12	55	GR.A.125A.***.SLES
125	140	125	248	19	65	120	4 x M12	55	GR.A.140.***.SLES
150	160	150	285	19	67	120	4 x M12	100	GR.A.160.***.SLES
150	180	150	288	19	67	150	4 x M12	100	GR.A.180.***.SLES
200	200	200	336	19	67	150	4 x M12	150	GR.A.200.***.SLES
225	225	200	340	22	88	170	4 x M16	150	GR.A.225.***.SLES
250	250	250	400	22	88	170	6 x M16	150	GR.A.250.***.SLES
250	280	250	400	22	88	170	6 x M16	150	GR.A.280.***.SLES
300	315	300	457	24	88	170	6 x M16	150	GR.A.315.***.SLES
300	355	300	457	24	145	220	6 x M16	150	GR.A.355.***.SLES
400	400	400							GR.A.400.***.SLES
450	450	450							GR.A.450.***.SLES
500	500	500							GR.A.500.***.SLES
500	560	500							GR.A.560.***.SLES
600	530	600							GR.A.530.***.SLES
700	710	700							GR.A.710.***.SLES
E.D. = Dacromet B&B
E.S. = Stainless steel B&N
*** = (Example GR.A.063.E.D.SLES or GR.A.063.E.S.SLES)
